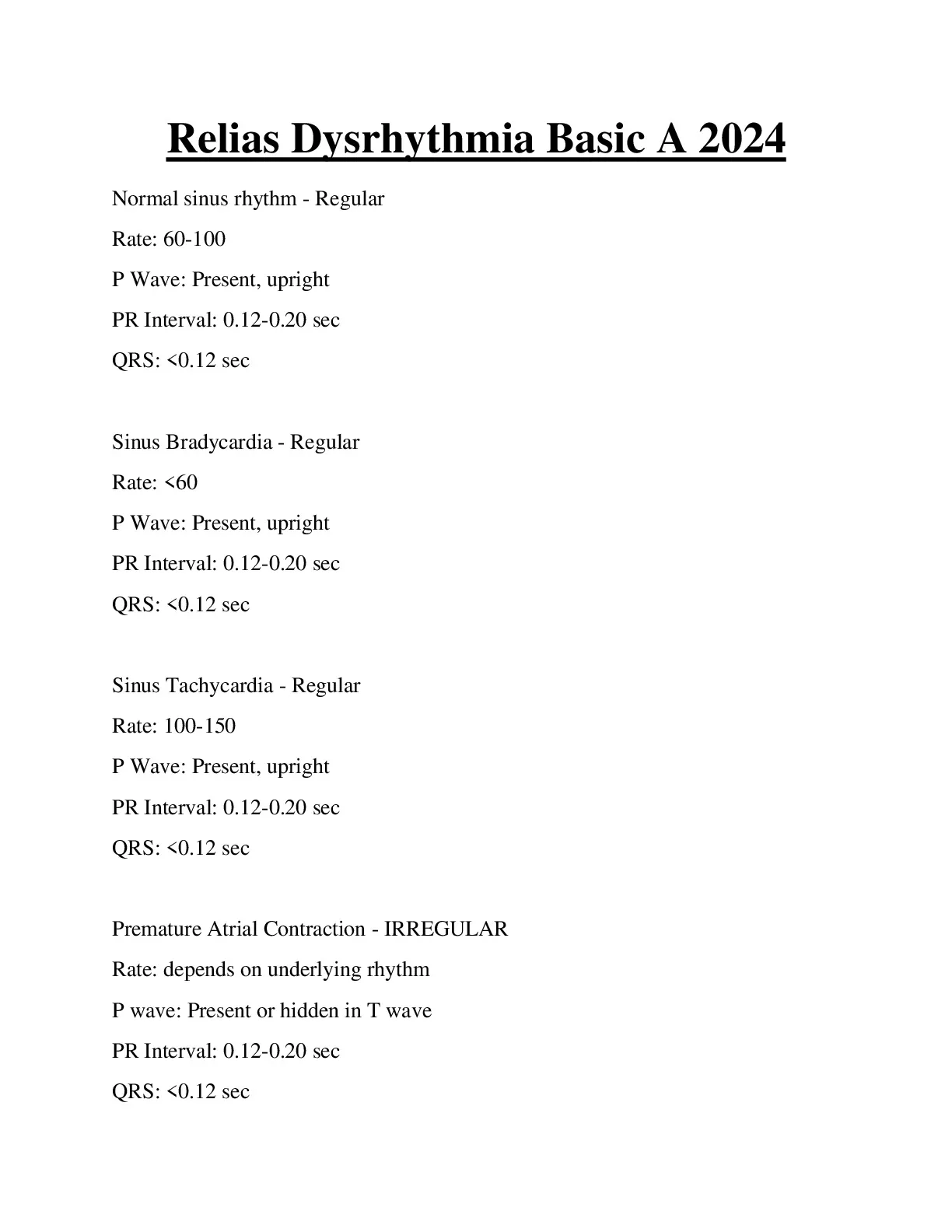

Relias Dysrhythmia Basic A 2024
Normal sinus rhythm - Regular
Rate: 60-100
P Wave: Present, upright
PR Interval: 0.12-0.20 sec
QRS: <0.12
... [Show More] sec
Sinus Bradycardia - Regular
Rate: <60
P Wave: Present, upright
PR Interval: 0.12-0.20 sec
QRS: <0.12 sec
Sinus Tachycardia - Regular
Rate: 100-150
P Wave: Present, upright
PR Interval: 0.12-0.20 sec
QRS: <0.12 sec
Premature Atrial Contraction - IRREGULAR
Rate: depends on underlying rhythm
P wave: Present or hidden in T wave
PR Interval: 0.12-0.20 sec
QRS: <0.12 sec
Atrial Fibrillation - IRREGULAR
Atrial rate: UNMEASURABLE
Ventricular rate: variable
P wave: unable to see
PR Interval: N/A
QRS: <0.12 sec
A fib RVR - IRREGULAR
Ventricular rate: 100-175
P wave: unable to see
PR Interval: N/A
QRS <0.12 sec
Atrial Flutter - Usually REGULAR can be irregular
Atrial rate: 250-350
Ventricular rate: variable BUT < atrial rate
P Wave: Flutter
PR Interval: N/A
QRS: <0.12 sec
Supraventricular Tachycardia - Regular
Rate: 150-350
P wave: Hidden in QRS or T wave
PR: unable to determine
QRS: <0.12 sec
Junctional Rhythm - Regular
Rate: 40-60
P Wave: ABSENT or INVERTED
PR Interval: None or <0.12
QRS: <0.12 sec
Accelerated Junctional Rhythm - Regular
Rate: 60-100
P Wave: NONE or INVERTED
PR Interval: None or <0.12
QRS: <0.12 sec
Junctional Tachycardia - Regular
Rate: >100
P Wave: NONE or INVERTED
PR Interval: None or <0.12
QRS: <0.12 sec
Premature Ventricular Contraction - IRREGULAR
Rate: refer to underlying rhythm
P Wave: NONE
PR Interval: N/A
QRS: WIDE and BIZARRE , >0.12 sec
Ventricular Tachycardia - Regular
Rate: >100
P Wave: NONE
PR Interval: N/A
QRS: WIDE and BIZARRE, >0.12 sec
Ventricular Fibrillation - Chaotic
Coarse: big waves
Fine: small waves
Rate: unmeasurable
P Wave: NONE
PR Interval: N/A
QRS: N/A
Idioventricular - Regular
Rate: 20-50
P wave: NONE
PR Interval: N/A
QRS: WIDE, >0.12 sec
Accelerated Idoventricular Rhythm - Regular
Rate: 50-100
P wave: NONE
PR Interval: N/A
QRS: WIDE, >0.12 sec
1st Degree AV Block - Regular
Rate: 60-100
P Wave: Present, upright
PR interval: >0.20 sec CONSISTENTLY LONG
QRS: <0.12 sec
Husband stays late till 9 consistently
2nd Degree AV Block Type I Mobitz, Wenckebach - IRREGULAR
Rate: 60-100
P wave: Present, upright
PR Interval: Progressively longer until drop (PR interval longer and longer until drop)
QRS: <0.12 sec
Husband stays late till 9, then 11, then 1, then doesn't come home at all
2nd Degree AV Block Type II - Irregular or regular
Rate: <60
P wave: Present, upright
PR Interval: PR interval consistently LONGER like type 1 but then a QRS will drop
QRS: <0.12 sec [Show Less]
